Easy Load

Easy Load Tool Changer

Simply snap in your tooling with the Easy Load receiver and adapter tool changer!

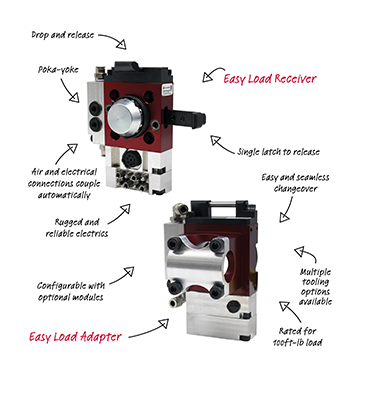

The receiver is attached to the rail, crossbar or boom within the press, and the tooling is attached to the adapter. All the operator has to do to load is align the adapter with the safety hook on the receiver and push the tooling until it snaps into place. Unloading is equally easy – just release and unhook.

The lightweight, compact receiver can be mounted on the front of a rail to save space. Heavy-duty 6-point contact gold plated pins and sockets ensure durability and reliability in harsh environments.

So power down your robot, and plug in the Easy Load to snap in your tooling!



Contact our product team on +1-800-272-4511 or at NASInsideSales@imi-precision.com to find out more, or fill out our online inquiry form:

Inquire Now

Features & Benefits

  • Rated for 100 ft-lbs dynamic load
  • Simple and safe with one-touch handle release
  • Top hook allows operator to easily align and connect up to two fingers at a time to reduce over-all changeover time
  • Optional check valves allow up to 4 high-flow automatic air connections
  • Optional electrics allow up to 8-pin automatic electrical connections
  • Heavy-duty, 6-point contact gold plated pins and sockets ensure durability and reliability in even the harshest environments
  • Up to 64 unique mechanical codes provide a built-in poka-yoke for error-proofing each job running in the press
