Spring Mounts & Levelers

Spring Mounts & Levelers

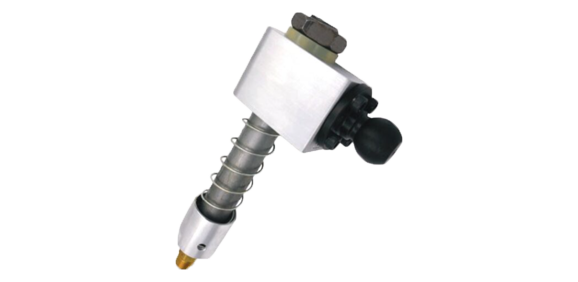

A vacuum spring mount is an interface connecting a cup to a venturi/vacuum source, and is used primarily in destacking applications. We have various options of Spring Mounts available to give your application maximum versatility to fit a wide variety of tooling situations.

SMX Series

Perfect for destacking applications, the SMX series spring mount connects to a vacuum pump, air source, or venturi on one end and either a suction cup or a line to a venturi cup combo on the other end. This spring mount has various options available to give maximum versatility to fit a wide variety of tooling situations.

VSL Series (1, 2, 3)

When handling sensitive objects such as fruit or cardboard, the VSL Series light duty Spring Levelers are the perfect option. Featuring a soft touch, allowing compliance for end-of-arm tools to ensure that all cups make contact, this is especially important when handling large objects such as sheets of plywood that may be warped and the tool has multiple vacuum cups that must make contact.

SLB40 Series (2, 3)

Recommended for applications which require lifting heavy loads without deflection, Norgren's Heavy Duty Spring Levelers include a rigid mounting bracket for a strong, solid connection to 1.5” [40mm] extrusions.

Light Duty Spring Leveler Mounting Brackets

Designed for flexible manufacturing operations, SLBF and SLBS Series mounting brackets attach to the top, sides or bottom of 1” [25mm] and 1.5” [40mm] extrusions.

FEB40 (2, 3) Adjustable Mounting Brackets

Adjustable, Fixed Extension Shaft & Bracket is a rigid, non-moving rod that mounts to the top, sides or bottom of 1.5” [40mm] extrusions. Once the shaft is adjusted to meet a specific height requirement, the bracket is clamped into a fixed position.
